TP-CR-1224-4SD Toprint Flexo Printer Slotter RDC Vacuum Transfer Auto Stacker for Corrugated Carton Box Making
GNERNAL FEATURS
- Control System
- Independent Windows Based Industrial Computer Control (With Keyboard), easy for setting-up and order management.
- Available to connect with Corrugator Line ERP system, coordinate orders effectively to avoid missing orders.
- Perfect Order Storage System, can store at least 100,000 orders.
- Lenovo Panel Computer has built-in Interactive Operation Manual, inside have Machine operation videos, adjusting videos, maintenance videos, repair videos, which are more intuitive and more effective to show the End-user how to operate the equipment, how to maintain, how to repair and safe operation and etc., so that customers can really feel worry-free to use Toprint Machine.
- Each unit adopts PLC and touch screen for operation, the main function adopts the data inputting or the order management system for adjusting, simple and convenient, quickly change order, greatly saves the operation and adjustment time.
- Remote Support allows to connect to equipment and resolve many issues remotely.
- Machine Features
- The latest industrial design, all the gear covers adopt high quality stainless steel, beautiful and durable.
- Uniformly driving, pneumatic interlocking, each single unit OPEN/CLOSE with alarm and safety protection device.
- Each unit is equipped with an emergency switch, can stop the unit moving when inside of machine to ensure the safety of operators.
- Maximum speed 200 sheets per minute, greatly improve production efficiency.
- All main transmission gears are made of special imported materials (20CrMnTi), carburized and quenched, precision ground, durable; Oil pump spray system for gear lubrication.
- All the electric components adopt international first-class brand, stable and durable, the main control electric box is equipped with industrial constant temperature air conditioner, and each unit electric box are equipped with dustproof, heat dissipation devices to ensure stable and reliable operation performance.
- The machine is equipped with automatic Oil Balance Device & automatic Circle Lubrication System.
- Freely match with auto pre-feeder, 2-3 persons for operation.

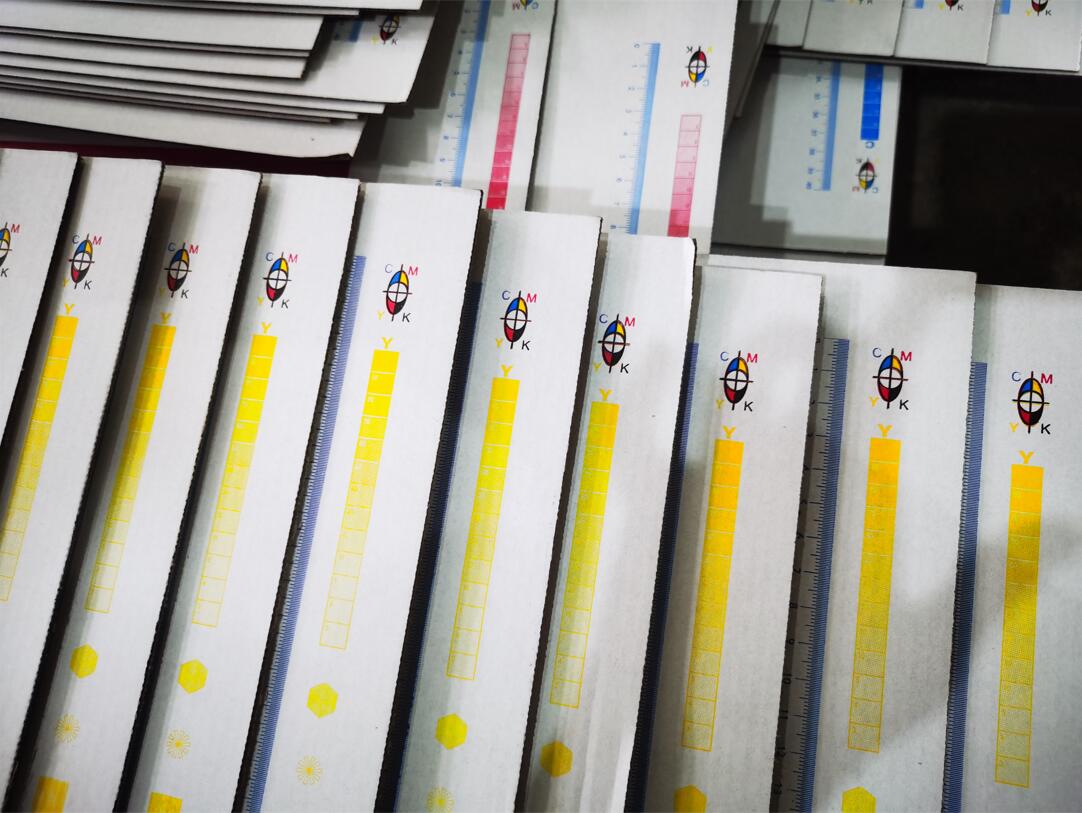

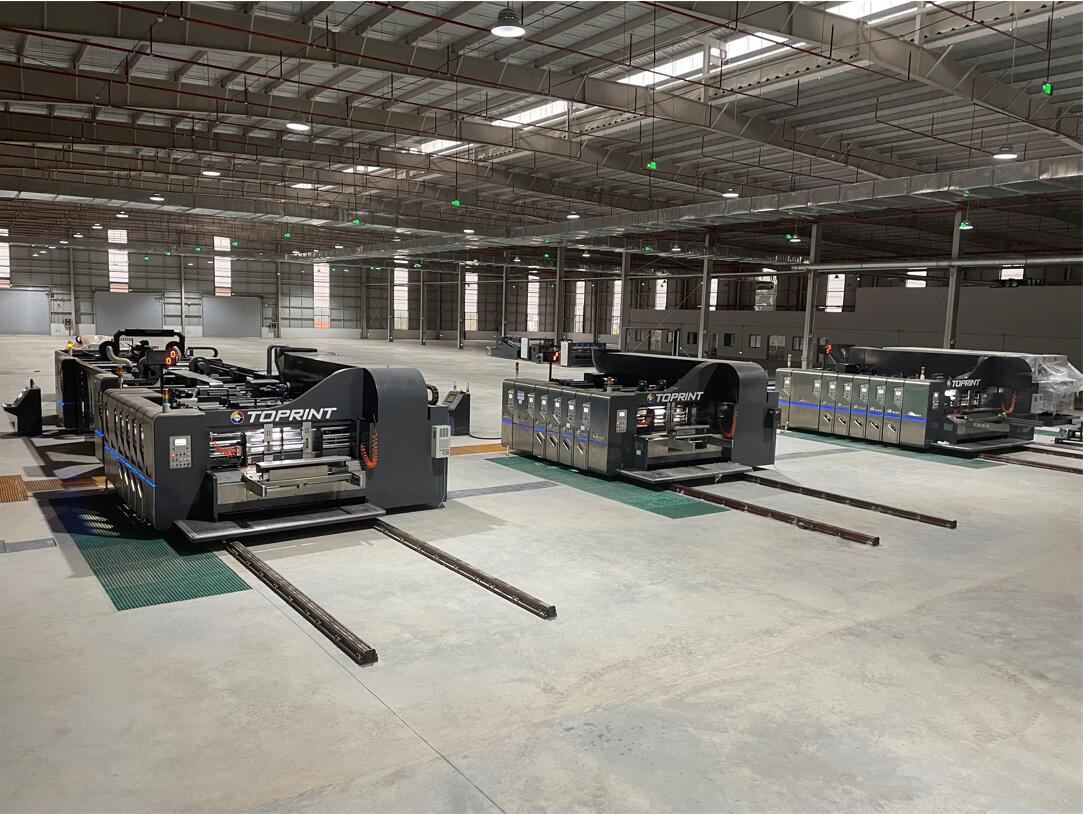

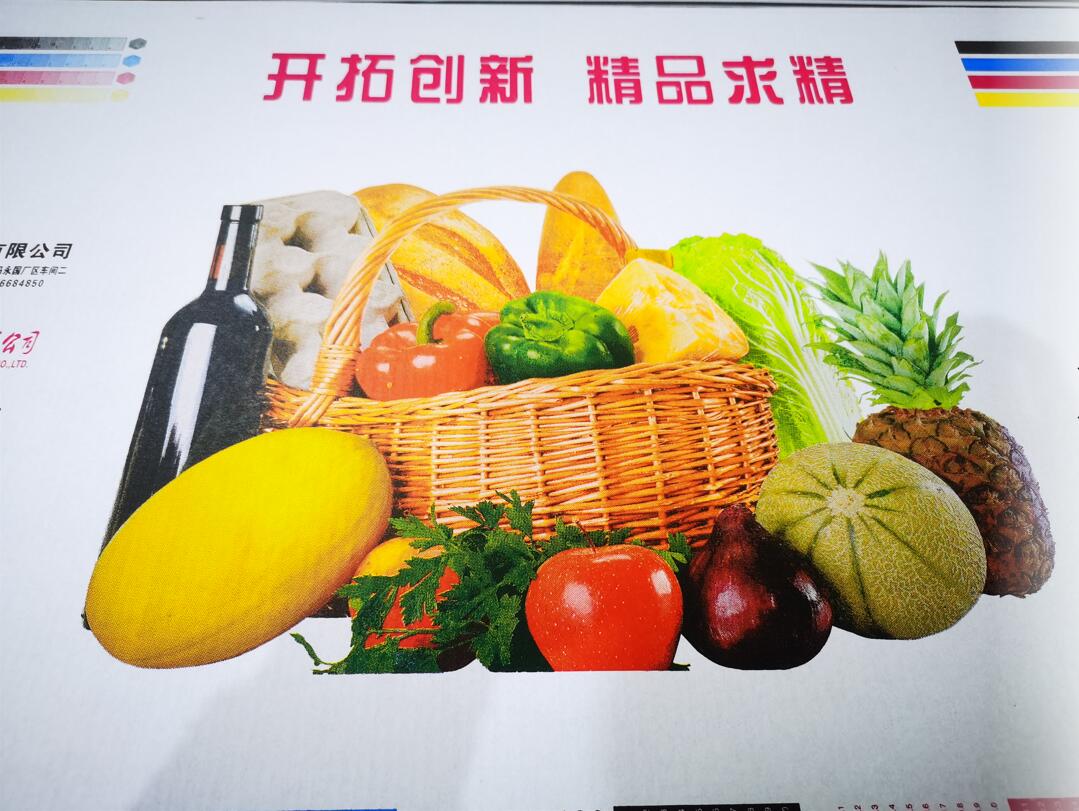

MACHINE PICTURES
MAIN PARAMETERS
| Model | TP-CR | TP-CR | TP-CR |
| Size | 0920 | 1224 | 1628 |
| Max. Sheet Size (FxA) | 890x2000 | 1190x2400 | 1600x2800 |
| Skip Feed Size (FxA) | 1200x2000 | 1400x2400 | 1800x2800 |
| Min. Sheet Size (FxA) | 280x700 | 350x720 | 450x850 |
| Max. Printing Area (FxA) | 890x1960 | 1190x2360 | 1600x2760 |
| Top Speed (Sheet/min) | 300 | 250 | 180 |
| Economic Speed (sheet/min) | 150-250 | 120-220 | 100-160 |
| Min. Slotting Space-Reverse Knife (BxCxBxC) | 270x100x270x100 | 270x100x270x100 | 320x120x320x120 |
| Min. Slotting Space-Normal Knife (BxCxBxC) | 160x160x160x160 | 160x160x160x160 | 160x160x160x160 |
| Max. Slot Depth Size | 250 | 320 | 450 |
| Min. Box Height Size | 110 | 110 | 160 |
| Max. Die-Cutting Area | 850x1950 | 1150x2350 | 1530x2750 |
| Sheet Thickness | 1.5-11 | 1.5-11 | 1.5-11 |
| Thickness of Printing Plate | 7.2 | 7.2 | 7.2 |
| Main Working Power(KW) | 4 Colors Slotter Die-cutter | 90/69/47 | 105/76/54 | 126.5/95.5/65.5 |
| Stacker + Vibrator | 3+10 | 3+10 | 3+10 |
| Total Power(KW) | 4 Colors Slotter Die-cutter | 105/81.5/59.5 | 120/88.5/66.5 | 141/108/78 |
| Stacker + Vibrator | 3+10 | 3+10 | 3+10 |
| Dimension (mm) | 4 Colors Slotter Die-cutter | 6600x4950x2550 | 9900x5350x2650 | 9900x5750x2750 |
| Stacker | 6500x3500x3000 | 6500x3970x3000 | 6500x4440x3000 |
| Vibrator | 3200x3300x1100 | 3200x3700x1100 | 3200x4150x1100 |
| Mark: 0820 0924 1220 1226 1228 1424 1426 1630 1632 2036 can be customized. |
Toprint Service
At Toprint we strongly believe that the sale doesn't simply end by delivered the machine to customer, we keep close in touch with all our customers and equally strong obligation to offer them all the support that they need, to make their business as successful and profitable as possible, then we can reach to double win.
After Sales Service
1. Whole Machine 1 year Warranty, Feeding Transmission Box 3 Years Warranty.
2. Working life time service provided to support you secure your investment.
2. Providing customer with Machine Foundation Drawing, supporting customer for foundation construction.
3. Installation and Training Service
3.1 Once machine reach to you, we will dispatch 1-2 qualified technician to you for handle machine installation.
3.2 Installation and Training will be carried out for 15-20 days, 3 days for installation and Machine testing, and Rest days for training.
3.3 Foundation Drawing, Manual Book, Electric Drawing, 3D Drawing.
3.4 Video Explanation for Machine Operation, Video Explanation for Machine Maintaining.
Remote Control Service
1. Remote Support allows to connect to equipment and resolve many issues remotely.
2. Remote Control for future software updating.
Spare Parts Quickly Supply Service
1. We take pride in the fact that we manufacture our own original spares, and can confidentially guarantee with full assurance that our customers are getting the best quality-price ratio.
2. Another bonus we offer is a well-stocked spare parts store which delivers the parts to you quickly and efficiently.
